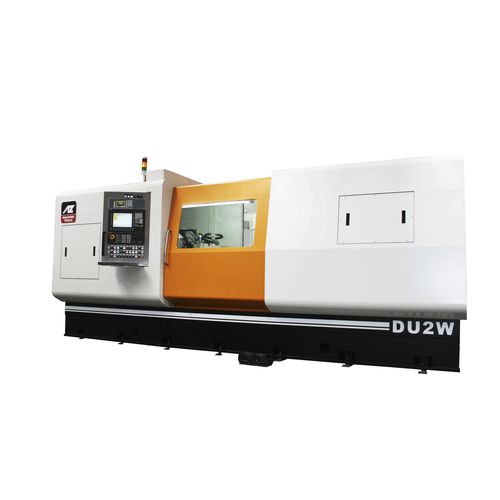

Orbital grinding machine DU2W

for crankshaftsCNCautomatic

DOUBLE GRINDING WHEEL CARRIAGEMAIN FEATURESSINGLE OR DOUBLE GRINDING WHEEL CARRIAGECAPABLE TO WORK MAIN PINS, CRANKPINS AND FLANGE IN ONE SET UPDOUBLE GRINDING SPINDLE TO REDUCE CYCLE TIMEGRINDING OPERATION WITH CBN GRINDING WHEELSBASEMENT AND STRUCTUREThe crankshaft orbital grinding machine is made of a welded base structure, made of composite material specifically designed by finite element method, to obtain the best compromise between structural deformations and permitted natural frequencies. The solution of the multicomponent composite material, offers great advantages compared to other traditional solutions particularly in terms of dynamic performance, which translate into a better vibrational response and considerable advantages in terms of weight. The basement is ready to be connect with a temperature control system, to control and stabilize temperature by heating ducts / cooling, embedded in composital. This system allows to reduce the times of warm-up and the problems of thermal nature caused by downtime, production breaks or changes of use. (Optional temperature control unit). The fixed table on the machine base is made of monolithic cast iron high strength, thermally stabilized. The table shaped to ensure the correct coupling and the ease of handling of all the components and equipment upon it accommodated.
