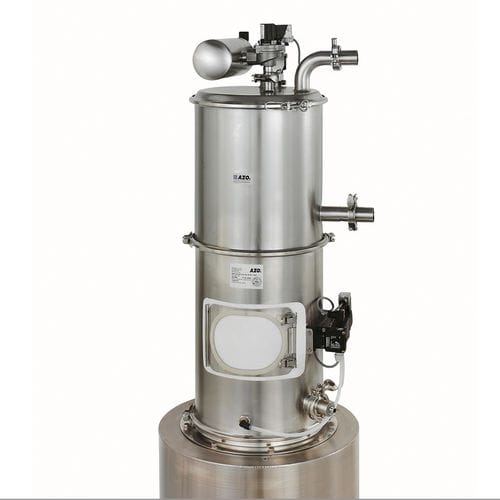

Pneumatic conveying vacuum receiver PKS...MK series

Pharmaceutical design Gentle conveying without segregation Stainless steel construction without dead corners Sturdy and perfected design Generously dimensioned filters ensure dust-free operation No production stoppage due to a device indicating that the product supply at the feeding point is running low High functional reliability through electronic control and monitoring Can be completely dismantled for cleaning Simple filter inspection via a swivelling device at the cover For reliable feeding of product without ingredient segregation to e.g. tablet presses, granulators or automated packaging lines in the pharmaceutical or other industries with similar high demands on hygiene and cleaning. The type PKS...MK receivers are used as individual receivers, with a separate blower each, in discontinuous vacuum, low-velocity vacuum and dense-phase vacuum conveying systems. They are mounted on the batch hoppers of the processing machines where they serve for separating the bulk materials. They are used for dust-like and powdery materials. Design Hose filter with compressed air purging. Outlet with conical valve operated via compressed air, conveying connection with valve, clean air connection, electronic control in a separate box with plug connections. Clamping ring for mounting on customer’s machine hopper. All parts in contact with product of ground and polished stainless steel, no dead corners or edges. Can be dismantled for cleaning.
