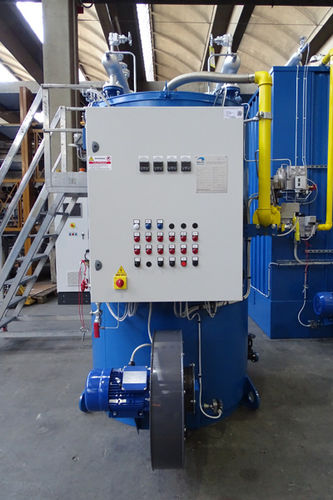

Thermal fluid boiler TPC-AS series
hot watergasfire tube

thermal fluid boiler
thermal fluid boiler
thermal fluid boiler
thermal fluid boiler
Add to favorites
Compare this product


Characteristics

Product
thermal fluid, hot water
Power source
gas
Firebox
fire tube
Configuration
vertical
Other characteristics
industrial
Power

Min.: 581 kW

Max.: 2,326 kW

Pressure

25 bar
(362.59 psi)

Description

TPC-AS is a vertical fired, coil type Hot Water Boiler designed for operation with water at high pressure and temperature. The concentric coils, flame reversal combustion chamber and three full gas pass configuration ensures high efficiency and very safe and simple operation. TPC-AS is fitted with a Babcock Wanson burner specifically developed for this duty and perfectly matched to the combustion chamber for high efficiency, low emission operation. Burner control can be simple two stage or fully modulating control depending on the process requirements. High Efficiency Coil Type Hot Water Boiler The TPC-AS configuration with large heat exchange surface and integral combustion air preheater ensures a thermal efficiency of up to 90% in standard form. TPC-AS includes an integral, air cooled outer case that acts as a combustion air pre-heater/economiser. This design also provides for efficient insulation of the boiler shell. Robust Equipment The TPC-AS Hot Water Boiler is robustly built for long life and reliable operation. Test pressure up to 25 barg and water operating temperature up to 220°C. The TPC-AS configuration ensures safe, simple operation in the most demanding of environments. Simple Reliable Operation TPC-AS includes an integral monobloc burner, combustion and system controls and standard safety equipment, all mounted and pre-wired. The TPC-AS Hot Water Boiler is delivered to site ready for connection to the fuel system, electrical power, chimney and water system for fast site installation. Refractory within the combustion chamber has been reduced to a minimum for long life and simple maintenance. Environmentally Friendly
