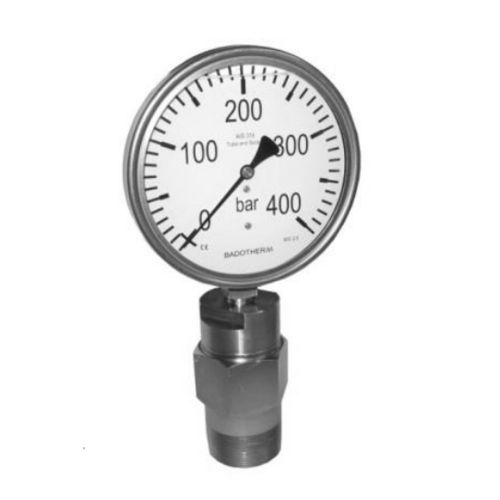

dial pressure gauge / Bourdon tube / for oil / process
BDT15 Badotherm Group

{{requestButtons}}

Characteristics

  • Display:

    dial

  • Technology:

    Bourdon tube

  • Applications:

    for oil, process

  • Other characteristics:

    stainless steel

  • Pressure:

    Min.: 250 bar (3,625.94 psi)

    Max.: 1,000 bar (14,503.77 psi)

Description

Badotherm pressure gauge model BDT15 is available in 160 mm diameter. The standpipe mud pump pressure gauge is a heavy duty gauge specially designed for oil well drilling applications. The unit will withstands high pressure pulsations and is vibration proof up to max 15 Hz with amplitude of 1 mm. The internai System consists of a stainless Steel diaphragm separator combined with a bourdon tube, filled with a pressure transferring fluid. The instrument is protected against hammer and pressure peaks by means of a internai peak restrictor device.
