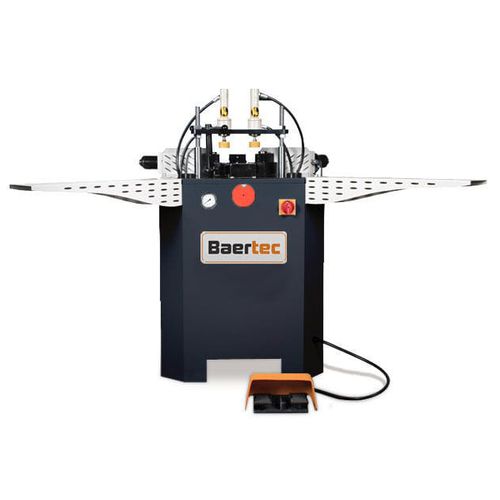

Aluminum profile corner crimping machine 2AP
semi-automatichydraulicfoot-operated

aluminum profile corner crimping machine
aluminum profile corner crimping machine
aluminum profile corner crimping machine
aluminum profile corner crimping machine
aluminum profile corner crimping machine
aluminum profile corner crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
for aluminum profiles
Operational mode
semi-automatic
Drive type
hydraulic, foot-operated
Crimping force

8,000 kgf

Power

3,000 W
(4.08 hp)

Voltage

400 V

Description

Specifications - Joins the corners of aluminum profiles by crimping the corner of the profile into the wedge. - Hydraulic operating system sustains high pressure power. - Hydraulic clamps enable maximum profile fixation. - Ability to work with all types of profiles. - The crimping blades can be adjusted easily with magnetic fixation system. - The support is lowered hydraulically for easy loading and off-loading of work pieces. - Step by step control of the operation by means of foot pedal. Technical Features • Power supply: 400 V, 3 ph, 50-60 Hz • Hydraulic pressure: 180 bar • Min. profile height: 15 mm. • Max. profile height: 90 mm. • Max. profile width: 140 mm. • Machine Height: 1,250 mm • Machine Length: 1,000 mm • Machine Width 800 mm • Machine Weight 350 kg
