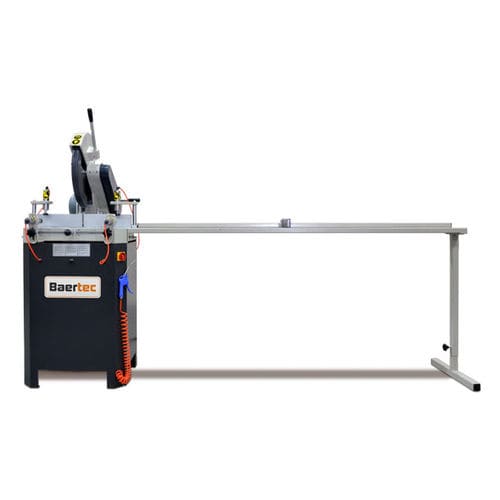

Miter saw 2DK400circularfor PVCfor profiles
Add to favorites
Compare this product
Characteristics
- Technology
- circular, miter
- Treated material
- for PVC
- Applications
- for profiles
- Other characteristics
- with cooling system, precision, electric, with roller conveyor
- Circular saw blade diameter
400 mm
(16 in)
Description
Description
- PVC profiles cutting with 400 mm. saw blade diameter.
- Stable, ground, continuous support table with turn table on precision bearings
- Wear-resistant and quiet multi-V belt drive
- Manual saw feed
- Equipped with saw blade as standard
Options
- Pneumatic material clamping
- Quick-acting clamping device
- Roller conveyors
- Saw blades
- Cooling system
Technical specifications
• Pivoting range from 0° – 45°, continuously adjustable to the left and to the right
• Positive location points at 15°, 30°, and 45°
• For cutting range, see cutting diagram
• Saw blade speed 2,800 rpm
• Power supply 230 / 400 V, 3~, 50 Hz
• Power output 3 kW
• Length 760 mm,
• Depth 880 mm,
• Height 815 mm,
• Weight 110 kg
