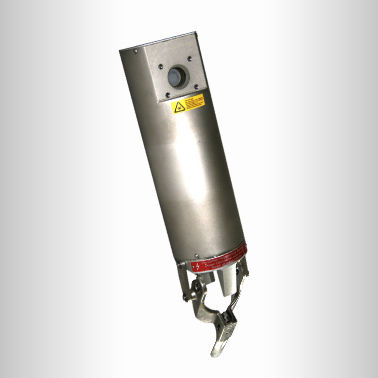

Directional X-ray tube TSD160/0

single-pole

The TSD160/0 is a universal Monopolar tube for light alloys, composites or small to medium steel thicknesses. Due to the combination of a large and a small focus into the same tube, the tube is ideal for all purposes applications where either power or definitions may be required. The large focus allows you to drive up to 3 kW power for applications where thicknesses are high or material is highly absorbent. The small focus will be preferred for applications with magnification of on very light material and thicknesses or with a radioscopic application. The outside diameter of the housing is barely 100 mm which will ensure that the tube can be inserted even in tiny spaces. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the HV plug cone is a R24. This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.
