measuring light curtain / multibeam / through-beam / IP65
MINI-ARRAY SERIES BANNER ENGINEERING CORP.

{{requestButtons}}

Characteristics

  • Function:

    measuring

  • Type of beam:

    multibeam

  • Configuration:

    through-beam

  • Protection level:

    IP65

  • Operating range:

    Max.: 1,819 mm

    Min.: 133 mm

Description

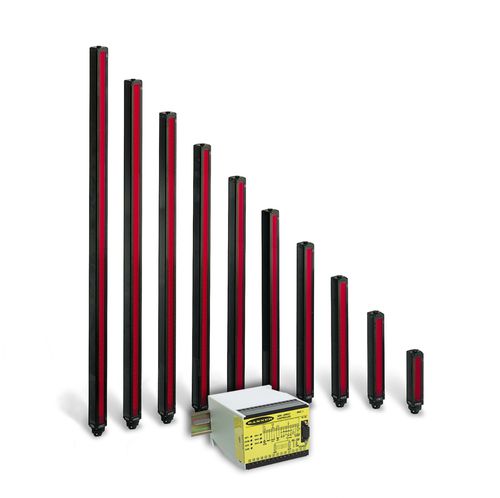

Measuring Light Curtain

- Features low-profile, programmable measuring light screen systems for inspections and profiling
- Includes a controller, emitter/receiver pair and interconnecting cables
- Offers programmable controller with a selection of measurement modes, scan modes and output configurations
- Available in heights from 133 to 1819 mm, depending upon model
- Offers emitters/receivers for detecting objects as small as 12.7 mm
- Includes advanced configuration software
- Available in models for central monitoring and control over a DeviceNet control network
- Features optional heated enclosures for outdoor applications
