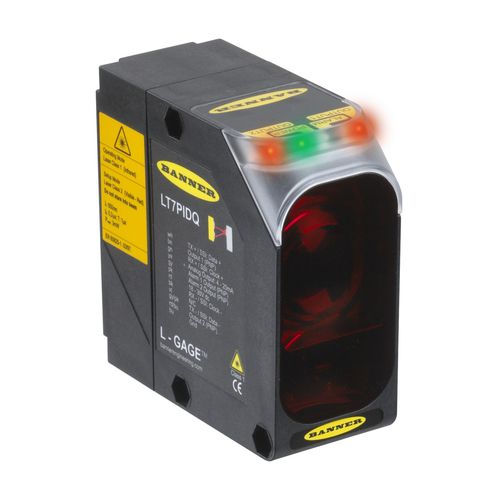

Time-of-flight laser distance sensor LT7 SERIES
analogdigitalIP67

time-of-flight laser distance sensor
time-of-flight laser distance sensor
time-of-flight laser distance sensor
time-of-flight laser distance sensor
time-of-flight laser distance sensor
Add to favorites
Compare this product


Characteristics

Technology
time-of-flight laser
Output
analog, digital
Protection level
IP67
Other characteristics
long-range, programmable, with digital display, retroreflective
Range

Min.: 500 mm
(20 in)

Max.: 250,000 mm
(820 in)

Description

250 m Range Time-of-Flight Sensor - Offered in retroreflective models with two discrete outputs (PNP) for extremely long ranges up to 250 m - Available in diffuse models with two discrete outputs (PNP) and one 4-20 mA output for long-range background suppression up to 10 m - Provides two alarm outputs with ongoing LCD display for easy troubleshooting - Features TEACH-mode programming, using integrated push buttons or serial interface - Continually displays sensing distance in millimeters or hundredths of an inch - Delivers excellent ±10 mm linearity - Offers choice of RS-422 or SSI-compatible serial connection - Uses visible Class 2 alignment laser for accurate alignment - Provides quick warmup to minimize drift
