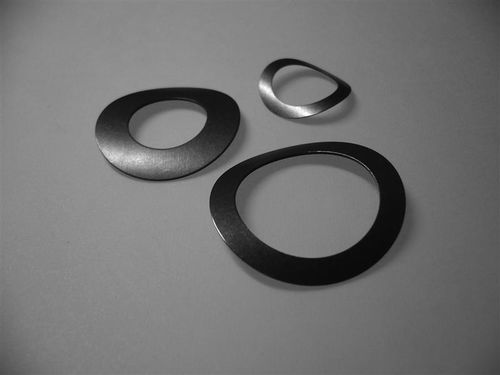

Elastic washer
corrugatedsteel

elastic washer
elastic washer
elastic washer
elastic washer
elastic washer
elastic washer
Add to favorites
Compare this product


Characteristics

Type
elastic
Configuration
corrugated
Material
steel
Internal diameter

Min.: 2 mm
(0.08 in)

Max.: 21 mm
(0.83 in)

External diameter

Min.: 6 mm
(0.236 in)

Max.: 28 mm
(1.102 in)

Thickness

Min.: 0.64 mm
(0.025 in)

Max.: 1.09 mm
(0.043 in)

Description

Precision engineered curved washers are available in many stock sizes. These washers are made of finely tempered spring steel with some sizes being made of stainless steel. They come de-burred and have had all set removed during manufacture. Curved washers exert relatively light thrust loads and are often used to absorb axial end play. The rate is approximately linear between 10% and 80% of available deflection.
