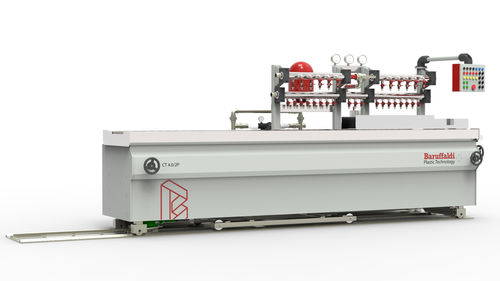

Profile extrusion calibrating table CALIB

Our new generation modular calibration tables are conceived with energy recycling circuits for the maximum reduction of energy consumption. They are available in different lengths (from 3 to 20 m) and with a number of pumps according to the specific applications. They stand out for their sturdiness, solidity and quality of materials, being entirely made of steel. They are equipped with a (stainless steel) water collection bath of the same size as the frame, modular (stainless steel) water and vacuum distributors with manifolds., vacuum on pumps fixed to independent frames, extractable sideways and mounted on a different rails system to avoid the transmission of vibrations. They are equipped with a stainless steel tank of the same size as the frame, modular water and vacuum stainless steel distributors, pumps assembled on anti-vibration frames, extractable on the side and independent from the frame. Motor-driven longitudinal movement on rails and vertical movement. Manual or motor-driven plane translation and tilting movements (optional). Motor-driven transversal adjustment. The whole calibration table moves longitudinally on rails. The vacuum pumps are assembled onto independent frames, that can be extracted sideways, to avoid the transmission of vibrations during the process. This type of calibration table is part of our standard Omnia extrusion line. Its longitudinal movements affect only the tank with the calibrators. The frame, resting on feet, is fixed, and only the water bath moves longitudinally. Our calibration tables are made according to the specific production needs of our customers: they are equipped with independent energy saving systems and are
