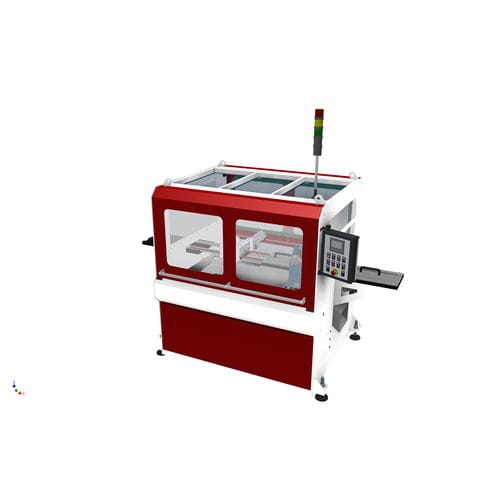

automatic punching machine / for profiles / for roller shutter profiles / cutting
PunzoBlockCut, PunzoCut Baruffaldi Plastic Technology

{{requestButtons}}

Characteristics

  • Control:

    automatic

  • Product handled:

    for profiles, for roller shutter profiles

  • Associated function:

    cutting

  • Other characteristics:

    guillotine

Description

PUNZOBLOCKCUT and PUNZOCUT

1. PUNZOBLOCKCUT FOR ROLLER SHUTTERS

To meet the increasing market demand in terms of production plant flexibility and optimization of the profile changeover times we have renewed our historical punching, interlocking and cutting units, we had patented in the past and since then sold with success to the major European producers of PVC roller shutters.

Both single and dual strand versions can easily be integrated into existing extrusion lines and completed also at a later stage with our assembly units, to obtain a complete automatic Combiroll- type roller shutter machine.

TECHNICAL FEATURES
Punching unit
Interlocking unit
Guillotine cutting unit
For single and dual strand
In the pneumatic version for a process speed up 6 m/min
In the electro-mechanical version with brushless motors for a speed up to 13 m/min


2. PUNZOCUT FOR THE AUTOMOTIVE INDUSTRY

This compact machine has been specifically designed to punch and cut co-extruded technical profiles for the automotive industry at a high extrusion speed.

In order to guarantee the process reliability the machine is equipped with an external photocell support frame and a special servo-aided haul-off, to feed the profile intermittently without damaging the profile surface, but at the same time with high process precision thanks to the brushless motor.

TECHNICAL FEATURES
Simultaneous punching and cutting units
External photocell frame and servo-aided haul-off
Inlet and outlet guides and profile discharge belt
Special treated punching and cutting tool sets
