- Hydraulics - Pneumatics
- Pump
- Slurry pump
- BATTIONI PAGANI POMPE

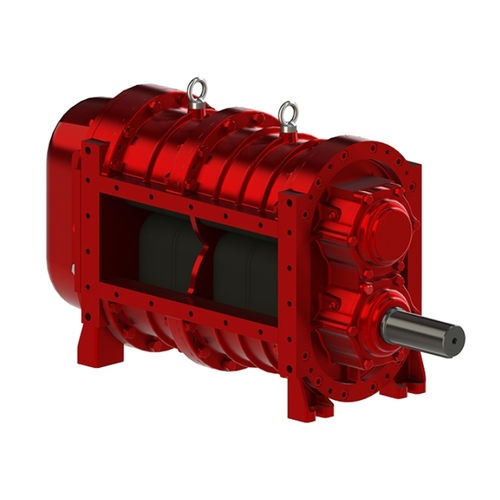

Self-priming pump BR BRwaterslurryhydraulic motor
Add to favorites
Compare this product
Characteristics
- Fluid
- water, slurry
- Operation
- hydraulic motor
- Priming
- self-priming
- Technology
- rotary lobe
- Domain
- for agricultural applications
- Applications
- handling
- Protection level
- abrasion-resistant
- Other characteristics
- modular
- Flow
Max.: 297 m³/h
(10,488.45602 ft³/h)Min.: 42 m³/h
(1,483.216 ft³/h)- Pressure
Max.: 10 bar
(145.038 psi)Min.: 5 bar
(72.519 psi)- Power
Max.: 52 kW
(70.7 hp)Min.: 13 kW
(17.68 hp)
Description
BR – THE SIMPLY RELIABLE
The BR series of positive displacement rotary lobes pumps are utilized for liquids and muds handling. It requires absence of abrasives and solid bodies less than 20mm wide.
The BR series is equipped by replaceable wear-resistant plates to reduce maintenance costs. The BR features a robust design thanks to the double shaft support that enables operation at high working pressure and significant vibrations reduction.
The BR simple and modular design gives high performances at low cost. The pump is ideal for agricultural applications or as auxiliary pump in vacuum trucks.
STANDARD FEATURES: NBR rubber lobes.
AVAILABLE MODELS: BR 40 / BR 80 / BR 120 / BR 160 / BR 200 / BR 240 / BR 280
AIRFLOW: from 700 l/min to 4950 l/min
