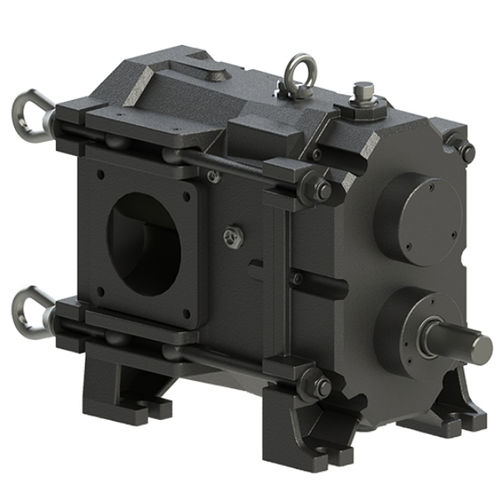

Self-priming pump BR-EVOrotary lobeindustrialhandling
Add to favorites
Compare this product
Characteristics
- Priming
- self-priming
- Technology
- rotary lobe
- Domain
- industrial
- Applications
- handling
- Protection level
- abrasion-resistant
- Other characteristics
- rotary, mechanical
- Flow
Max.: 283 m³/h
(9,994.05068 ft³/h)Min.: 38 m³/h
(1,341.95734 ft³/h)- Pressure
Max.: 10 bar
(145.038 psi)Min.: 6 bar
(87.023 psi)- Power
Max.: 44 kW
(59.82 hp)Min.: 11 kW
(14.96 hp)
Description
BR-EVO – THE EVOLUTION
The BR-EVO series of positive displacement rotary lobes pumps is the evolution of the BR pump. Utilized for liquids and muds handling, the BR-EVO requires absence of abrasives and solid bodies less than 30mm wide.
The BR-EVO gearbox is a separate part from the pumping group. This prevents the gearbox to be damaged in case of a break of the mechanical seals.
The BR-EVO features trilobal lobes design and cooled WIDIA mechanical seals.
The BR-EVO has been specifically designed for in field easy maintenance: rubber lobes, mechanical seals and wear-resistant plates can be replaced without having to remove the pump from the truck system and without having to open the pipes.
STANDARD FEATURES: NBR rubber lobes.
AVAILABLE MODELS: BR-EVO 50 / BR-EVO 90 / BR-EVO 170 / BR-EVO 260
AIRFLOW: from 633 l/min to 4718 l/min
