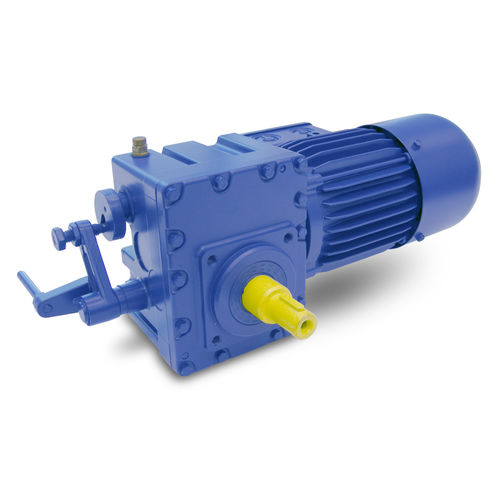

Overhead monorail conveyor gear-motor BM series
three-phasesingle-phaseworm

overhead monorail conveyor gear-motor
overhead monorail conveyor gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
three-phase, single-phase
Type
worm, spur
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
100 W...500 W, 50 W...100 W, 500 W...1000 W
Torque
50 - 100 Nm, 100 - 200 Nm
Performance
high-efficiency
Product applications
for overhead monorail conveyors, for conveyor systems, for hostile environments
Certifications
CE, OHSAS 18001, ISO 9001, ISO 14001
Other characteristics
low-noise, IP65

Description

Bauer geared motors have been used in material handling for more than 20 years to drive monorail overhead conveyors. The BM gear motor is an ideal solution for floor conveyors. The clutch lever is always on the "L" side of the gear motor, the side opposite the motor. This enables the gear motor to be designed with an output shaft on both sides, which also allows it to be used as a drive for floor conveyors.  Reliable operation even in hostile environments The drives are supplied with IP65 degree of protection as standard. This is a great advantage for operation in dusty environments.  Low-noise operation  The noise emission from two-ratio gear motors is lower than three-ratio motors with the same ratios. The first gear wheel, which is primarily responsible for noise, has a smaller diameter than three-ratio models. Low operating costs  Gear motor size BM09 in the load range to approx. 2000 kg has worm gears for the first ratio and spur wheels for the second ratio. The specially developed worm gears with very low ratios provide very high efficiency, similar to that of bevel gear drives.  Product Features • versatile installation possibilities • Completely enclosed, sealed against dust and water spray • Lubrication change first after 15000 hrs • Low noise gearing • Connection Standard with CAGE CLAMP® • Additional features:  • Connecting with Plug connectors. • CSA, UL, ATEX, GOST, CCC, • Motors according to EN 60034 • Corrosion category based on DIN ISO 12944-5 • C1, C2, C3, C4, C5-I, C5-M
