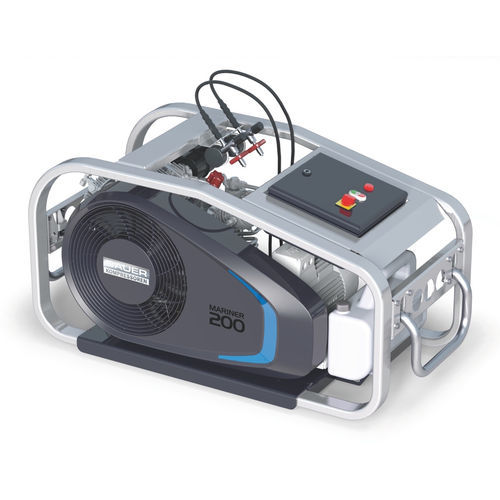

Piston compressor MARINER 200 series
breathing airgasoline engineportable

piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
breathing air
Power source
gasoline engine
Portability
portable
Lubrication
lubricated
Application domain
industrial
Voltage
400 V
Other characteristics
high-pressure, rugged, low-pressure, light, three-stage, four-stage
Pressure

Min.: 90 bar
(1,305.34 psi)

Max.: 420 bar
(6,091.58 psi)

Flow

200 l/min
(52.83 us gal/min)

Power

4 kW, 5.5 kW, 6.6 kW
(5.44 hp, 7.48 hp, 8.97 hp)

Length

130 cm
(51 in)

Width

60 cm, 62 cm, 65 cm
(24 in, 24 in, 26 in)

Height

63 cm, 81 cm
(25 in, 32 in)

Weight

115 kg, 185 kg
(253.5 lb, 407.9 lb)

Description

Tough: Thanks to an incredibly durable driving gear. Suitable for short-term operation and continuous service Durable and robust: Three-stage or four-stage construction and industrial roller bearings maximise the service life of the units Protected against corrosion: With an ultra-lightweight aluminium chassis for the best possible protection against corrosion Reliable lubrication: With generously dimensioned low-pressure oil pump With FAD of 200 l/min, the MARINER 200 is the versatile mobile compressor unit in the PROFI-LINE II series which impresses with its range of equipment: the corrosion-resistant crash frame to which system accessories can be attached is integrated as a standard feature. Furthermore, the first stage and the high-pressure final stage of the MARINER 200 feature piston rings made from a new high-tech plastic which are virtually wear-free. The vibration-reducing motor rocker design optimises smooth running. Thanks to the extensive range of BAUER accessories, the compressor can be customised to meet all manner of different requirements and intended uses in next to no time. Suitable for use as a diving compressor, shipping compressor, for installation in yachts, as a fire service compressor, paintball compressor and in many other applications. Petrol and electric versions available. IK 120 compressor block The BAUER IK 120 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios.
