air-cooled compressor / helium / stationary / electrically-powered

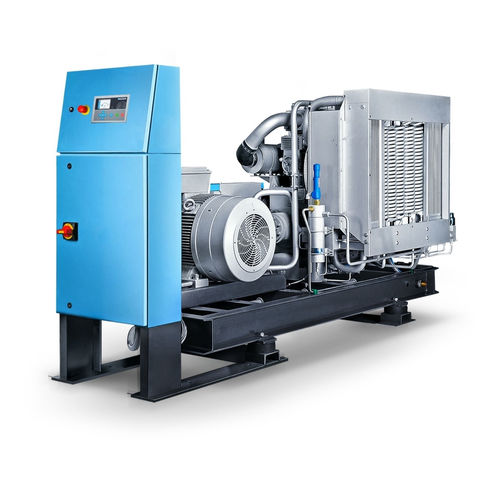

G series BAUER KOMPRESSOREN GmbH

{{requestButtons}}

Characteristics

  • Type:

    helium

  • Portability:

    stationary

  • Power source:

    electrically-powered

  • Technology:

    piston

  • Lubrication:

    lubricated

  • Other characteristics:

    rugged, high-pressure, air-cooled, belt drive, gas-tight

  • Applications:

    industrial

  • Pressure:

    90 bar, 230 bar, 350 bar (1,305.34 psi)

  • Flow:

    35 m³/h, 40 m³/h, 51 m³/h, 79 m³/h, 91 m³/h (1,236.01 ft³/h)

  • Power:

    18.5 kW, 22 kW, 30 kW, 45 kW (25.15 hp)

Description

Very easy to maintain: Thanks to V-belt drive and proven BAUER system components

Cost-efficient: Low installation overhead combined with cost-effective operation

Optimum free air delivery rates for your application: For the compression of helium, argon and other noble gases

Comprehensive assurance of spare parts supply: With the global BAUER Service and Support network

The large-scale, high-pressure industrial series by BAUER KOMPRESSOREN impresses as an optimised, gas-tight option for the compression of helium, argon and other noble gases.

A low-maintenance V-belt drive, very robust and reliable unit components and low design make this series ideal even in difficult installation conditions and where space is at a premium.

Recirculation of blowby and lost gas from the automatic condensate drain into the intake buffer combined with efficient encapsulation of the safety valves effectively minimises gas losses.

Low speeds and optimised grading of the compressors provide the basis for the very best compression ratios for the compression of noble gases.
