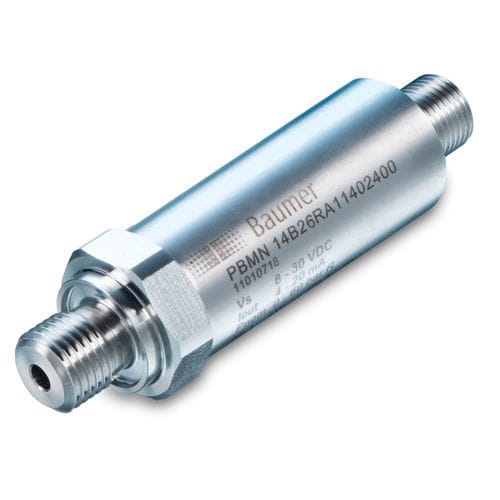

low pressure pressure transmitter / relative / absolute / piezoresistive
PBMN low pressure Baumer Group

{{requestButtons}}

Characteristics

  • Pressure type:

    relative, absolute

  • Technology:

    piezoresistive

  • Other characteristics:

    stainless steel, precision, with long-term stability, temperature-compensated, low pressure, fully-welded, oil-filled, ATEX, rugged

  • Process temperature:

    Max.: 120 °C (248 °F)

    Min.: -40 °C (-40 °F)

  • Pressure range:

    Max.: 40 bar (580.15 psi)

    Min.: -1 bar (-14.5 psi)

Description

Fully welded pressure transmitter for industrial applications

Precision measurement from 0.1 to 40 bar
Excellent temperature stability
Robust stainless steel housing
Fully welded, oil-filled measuring cell
ATEX approval
Absolute pressure, relative pressure and vacuum measurement
