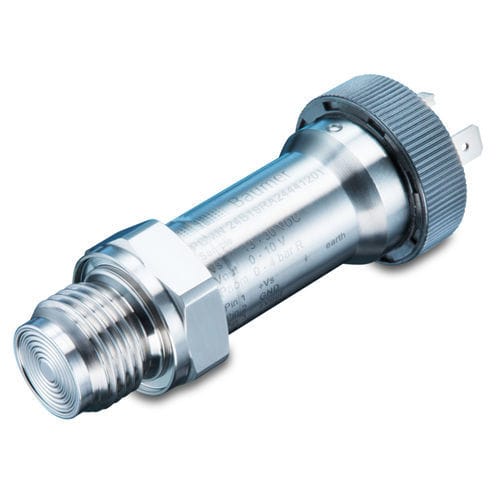

relative pressure transmitter / absolute / piezoresistive / flush diaphragm
PBMN flush Baumer Group

{{requestButtons}}

Characteristics

  • Pressure type:

    relative, absolute

  • Technology:

    piezoresistive

  • Mounting:

    flush diaphragm

  • Other characteristics:

    stainless steel, compact, fully-welded, for the food industry, for water treatment, ATEX, rugged

  • Process temperature:

    Min.: -40 °C (-40 °F)

    Max.: 200 °C (392 °F)

  • Pressure range:

    Min.: -1 bar (-14.5 psi)

    Max.: 400 bar (5,801.51 psi)

Description

Fully welded pressure transmitter with flush membrane

Cavity-free process connection
Resistant to all conventional CIP cleaning media
Compact installation from G 1/2 A
Absolute pressure, relative pressure and vacuum measurement
