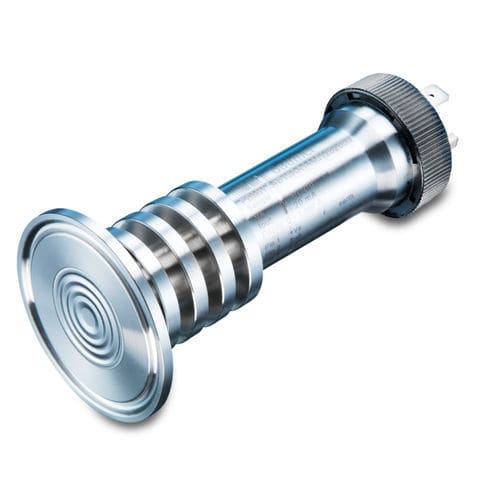

relative pressure transmitter / absolute / piezoresistive / flush diaphragm
PBMH Baumer Group

{{requestButtons}}

Characteristics

  • Pressure type:

    relative, absolute

  • Technology:

    piezoresistive

  • Mounting:

    flush diaphragm

  • Other characteristics:

    compact, high-temperature, sanitary, fully-welded, for the food industry

  • Process temperature:

    Max.: 200 °C (392 °F)

    Min.: -40 °C (-40 °F)

  • Pressure range:

    Max.: 40 bar (580.15 psi)

    Min.: -1 bar (-14.5 psi)

Description

Fully welded pressure transmitter for hygenic applications

3-A sanitary standards, FDA-compliant, EHEDG-certified
Resistant to all common CIP cleaning media
SIP-capable (150 °C max, < 30 min)
Versions available for high media temperatures (200 °C)
Threadless mounting using a clamping connection
Optionally available with switching output
Tank linearization and volume calculation
Absolute pressure, relative pressure and vacuum measurement
