relative pressure transmitter / piezoresistive / ceramic / analog
DMK 457 BD|SENSORS GmbH

{{requestButtons}}

Characteristics

  • Pressure type:

    relative

  • Technology:

    ceramic, piezoresistive

  • Output signal:

    analog

  • Other characteristics:

    stainless steel

  • Process temperature:

    Max.: 125 °C (257 °F)

    Min.: -40 °C (-40 °F)

  • Pressure range:

    Max.: 600 bar (8702.26 psi)

    Min.: 0 bar (0 psi)

Description

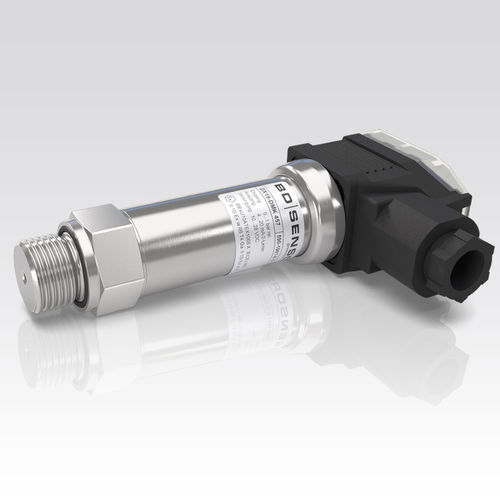

The pressure transmitter DMK 457 with ceramic sensor has been designed for typical applications in shipbuilding and offshore constructions as alternative to our pressure transmitter DMP 457 with piezoresistive stainless steel sensor.

In combination with the copper-nickel-alloy the DMK 457 is suitable for seawater, e.g. level measurement in ballast tanks, etc.

Features:
- nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- accuracy: 0.5 % FSO
- shipping approvals GL (Germanischer Lloyd), DNV (Det Norske Veritas), CCS (China Classification Society)
- pressure port CuNiFe (sea water resistant)
- oxygen application

Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
