Portable chamfering and deburring machine EKF 300.3
weld preparation

portable chamfering and deburring machine
portable chamfering and deburring machine
portable chamfering and deburring machine
portable chamfering and deburring machine
portable chamfering and deburring machine
portable chamfering and deburring machine
Add to favorites
Compare this product


Characteristics

Type
portable
Applications
weld preparation
Power

1,500 W
(2.04 hp)

Rotational speed

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Chamfer angle

30 °, 45 °

Description

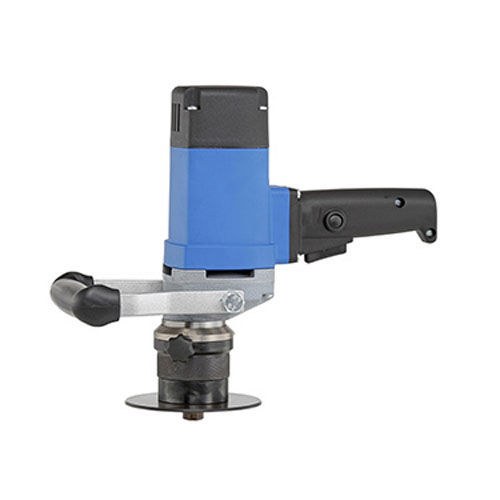

EKF 300.3 Chamfering Machine with fine adjustment feature for slight chamfers when deburring for the preparation of weld seams. The EKF 300.3 is ideal for chamfering 30-degree angle in 5 mm (1/4") width. Ideal for straight edges, from the outside edge of the profile as well as the inside edges. Equipped with a robust milling cutter the EKF 300.3 has 3 pieces of carbide inserts in a triangular shape which can be used from 3 sides. Made in Germany EKF 300.3 is equipped with a powerful 1500 Watt (13.6 Amp) motor which delivers 6000 RPM. This compact EKF 300.3 chamfering machines weighs just 4.6 Kg (10.5 lbs)
