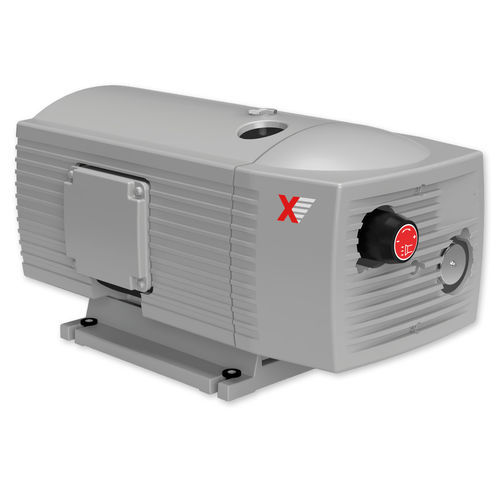

Rotary vane vacuum pump VX 4.25
oil-free220VAC380VAC

rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Supply voltage
230VAC, 220VAC, 380VAC, 460 VAC
Number of stages
single-stage
Other characteristics
compact, small, air-cooled, direct-drive
Ultimate vacuum

100 mbar
(1.45 psi)

Flow rate

25 m³/h, 30 m³/h
(882.87 ft³/h, 1,059.44 ft³/h)

Power

0.75 kW, 0.9 kW
(1.02 hp, 1.22 hp)

Length

572 mm
(23 in)

Width

Min.: 270 mm
(10.63 in)

Max.: 280 mm
(11.02 in)

Height

293 mm
(11.54 in)

Noise level

62 dB, 67 dB

Weight

26 kg
(57.32 lb)

Description

Rotary vane vacuum pumps, oil-free The VX 4.25 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. 100% dry-running (oil-less) operation Long vane life Continuous duty rated Features 20,000 hour vane life 100% dry-running (oil-less) operation Quiet operation Long vane life Continuous duty rated Air-cooled Single shaft direct drive Compact design Variety of motors available Benefits Low operation and maintenance costs No cycling times Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime
