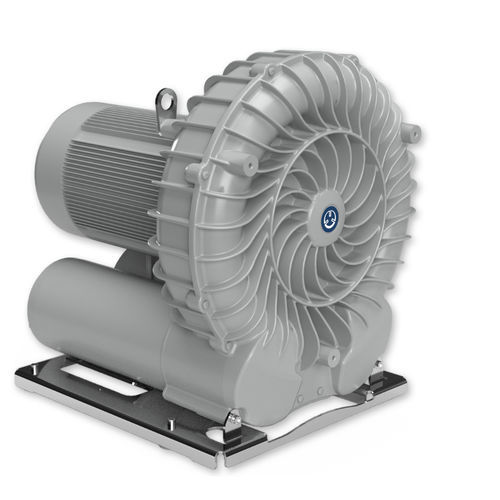

Side-channel vacuum pump SV 700/1 lubricatedsingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- side-channel
- Lubrication
- lubricated
- Number of stages
- single-stage
- Ultimate vacuum
-360 mbar
(-5.22 psi)- Flow rate
750 m³/h, 900 m³/h
(26,486 ft³/h, 31,783.2 ft³/h)- Power
11 kW, 13.2 kW
(14.96 hp, 17.95 hp)- Width
496 mm
(19.53 in)- Height
596 mm
(23.46 in)- Noise level
73 dB, 74 dB
- Weight
119 kg
(262.35 lb)
Description
Side channel vacuum pumps, single stage
The SV 700/1 is a turbo dynamic pump that offers high performance with 100% free of oil and contact during operation. These side channel blowers are low-maintenance, highly efficient, and require only minimal maintenance.
Integrated inlet & discharge silencers
Pedestal with vibration isolators for horizontal installation
External suction filter (optional)
External vacuum relief respectively safety valve (optional)
Features
Non-contact compression
Compact design
Inlet & discharge silencers
Sealed bearings eliminate greasing
Rubber foot or pedestal mount for versatile installation
Benefits
Low operating and exhaust temperatures
Quiet Operation
