Benchtop high-pressure homogenizer
max. 250 ml/min, max. 3 100 bar | Mini DeBEE
BEE International
Next Generation Homogenizers

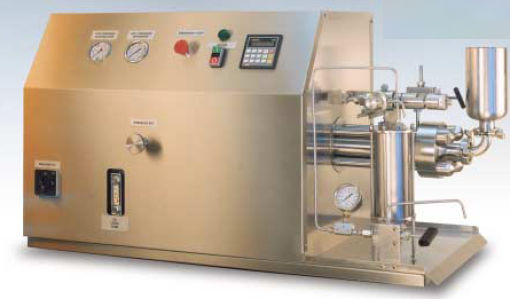

The Mini DeBEE is an electric laboratory High Pressure Homogenizer. The Micro system provides the product developer with a high level of flexibility and ease in formulating new and novel emulsions, dispersions, deagglomerations and cell ruptures. In the laboratory, the Micro DeBEE is reliable and capable of producing unmatched results in mixing, blending and size reduction. The Micro DeBEE Homogenizer is easy to operate and maintain.
Key features:
• DeBEE High Pressure Homogenizing Cell with many options for maximum experimentation
• PLC electronic control and monitoring system for simple push-button operation
• Maximum continuous product flow rate: 250 ml/min
• Minimum sample size: 30 ml standard, optionally as small as 10 ml
• Proven scale-up to production volumes
• Process pressure: Continuously adjustable from 0 to 45,000 PSI (3,100 bar)
• Constant processing pressure during power stroke
• Stainless steel enclosure
• Power supply: 3-phase, 50/60 Hz, 220 VAC - 5.5HP (4 kW)
• Options available for product cooling, back pressure and custom cart with rollers
