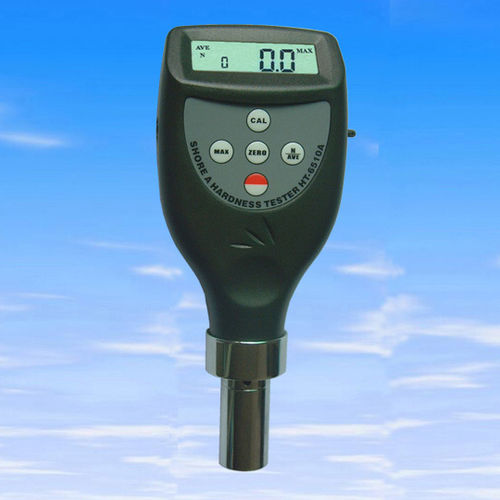

Shore A hardness tester HT6510
Shore DShore CShore O

Shore A hardness tester
Shore A hardness tester
Add to favorites
Compare this product


Characteristics

Type
Shore A, Shore D, Shore C, Shore O
Mounting
portable
Product applications
for plastics, for rubber
Other characteristics
digital display

Description

Test scale: shore hardness Standards: DIN53505, ASTMD2240, ISO7619, JISK7215 Parameters displayed: hardness result, average value, max. value Measurement range:0-100H Measurement deviation:<1%H Resolution: 0.1 Auto switch off With RS232C interface Operating conditions: 0℃ to 40℃ Power supply: 4x1.5V AAA (UM-4) battery Battery indicator: low battery indicator Dimensions: 162x65x38mm Weight (not including probe):173g SHORE A: soft rubber, elastomers, natural rubber products,Neoprene, resin, Polyester, soft PVC, leather, etc. SHORE B:middle hard rubber materials, typewriter rollers, etc. SHORE D:fibre plastics, hard rubber, hard plastic materials, Plexiglas,stiff thermo plastics, Formica, print roller, vinyl-plate, cellulose acetate, etc. SHORE 0: soft elastic materials, print rollers, middle firm textile fabrics,nylon, Orlon, Perlon, Rayon SHORE 00 /000 / 000 SIRHD / DIDC supersoft: sponge- and cellular rubber, foam rubber, silicone, gel-like materials SHORE D0: plastics and middle hard up to hard rubber materials SHORE C:plastics and middle hard rubber materials Model: HT6510(A .B.C.D.O.OO.DO)
