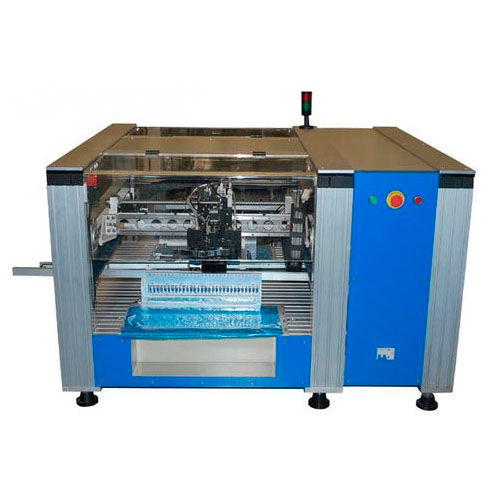

SMT pick-and-place machine TP400V

automaticbenchtop

Product introduction: Automatic pick and place machine TP400V-II is the high cost-effective equipment in the market, it can pick and place variety of components by its vacuum nozzle. The machine can mount SMD chip components above 0402,SOIC, PLCC, QFP IC; vision position system which can meet pitch 0.5mm of QFP IC. Beside round datum mark,square PCB pad and ring hole pad can be recognized as datum mark. Features: 1. Automatic Mount by control of software. 2. Quick PROTEL data import or write-in by hand 3. Visional + machinery position. 4. Visional program system can identify MARK point automatically to improve production efficiency and accuracy. 5. Visional program system can produce X, Y coordinates of all components automatically after confirmed the basic MARK point, and them complete the mounting process. 6. Unique optical prism and high-definition industrial cameras for placing high-precision components. 7. Exact quadrate guide rail, smooth gliding arm for improving mounting accuracy. 8. Air suspended pick-and –place head 9. Automatic nozzle replacement system.
