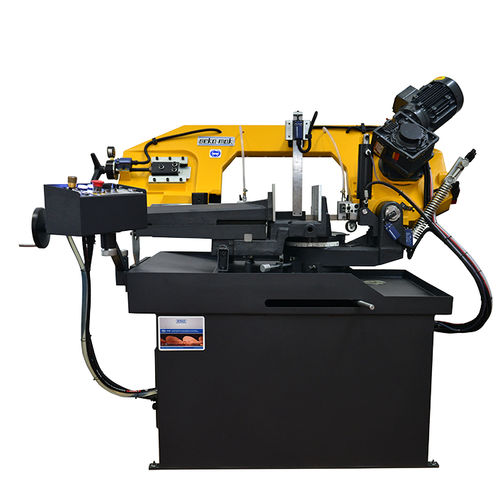

Double-miter saw BMSY-270DG
bandmiterfor steel

double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
double-miter saw
Add to favorites
Compare this product


Characteristics

Technology
band, miter
Treated material
for steel, for aluminum, for stainless steel, for copper, for non-ferrous materials
Applications
for profiles, for tubes, for bars
Other characteristics
semi-automatic, horizontal, with cooling system, CE, hydraulic, inverter, with roller conveyor, with hydraulic vise, double-miter
Round piece diameter

150 mm, 210 mm, 240 mm, 270 mm
(6 in, 8 in, 9 in, 11 in)

Description

• semi-automatic double miter for cutting profiles and Solid material in steel and non-ferrous material and excellent price-performance ratio • robust constructed monoblock saw frame • manually swiveling saw frame with hydraulic clamping for optimal Miter (not BMSY 270 DGH ) • miter on mobile control panel digitally readable (not BMSY 270 DGH ) • Hydraulic clamping of the horizontal vise • automatic saw frame raising on the cut end • continuously adjustable belt speed 34-68 m / min BMSY 270 DGH / 20-100 m / min BMSY DGH 360 /440 DGH • Sensitive cutting pressure regulation function of the material properties • hydraulic-mechanical belt tension • tape guide with hard metal pads sheets and rolls • thermal overload protection and no-volt release • Automatic shut-off after cut end • automatic belt break protection Driven • Chip brush on impeller ( not BMSY 270 DGH ) Optional Features 3 Mt Material Roller Table ILC Microspray Device Standard Features • Saw Blade 27 • Inverter • Blade Brash • Hydromechnic Blade Tension • Security Switch • Vice • Control Panel • Coolant Pump • Heavy Duty Gearbox • Height Adjustment swich • Metarial Limit Shaft
