single-phase electric gearmotor / coaxial / helical / compact
20,000 Nm (14,751.243 ft.lb)
160 kW (217.54 hp)

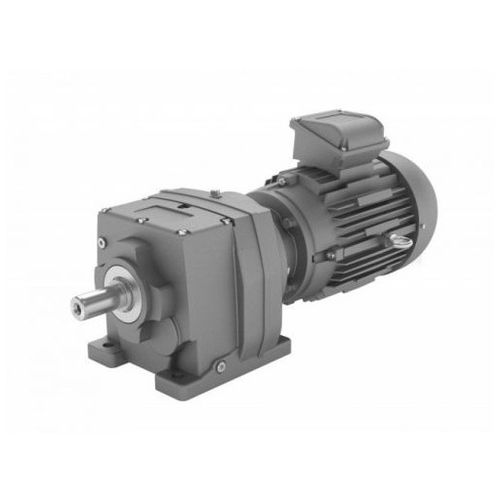

After long years of research and development of proficient designing, the Series M geared motor has come to the fore. This equipment brings great efficiency to the speed reducing geared motors. It also offers high load carrying capacity and is immensely reliable.
To comply with a wide range of needs, Series M in line geared motors and reducers can handle input power of up to 90Kw along with an optimum output torque of 11,000 Nm. It is available in the unit sizes of 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 13, 14 with Input Power of as much as 90kW. Its range of Gear Ratios is 1.2 to 8:1 (single reduction) and 1.4 to 70:1 (double reduction); 250:1 (triple reduction) and 16,200:1 (combined units). The size of its motor is IEC Frames from 63 to 280 and NEMA Frames from 56 to 405.
