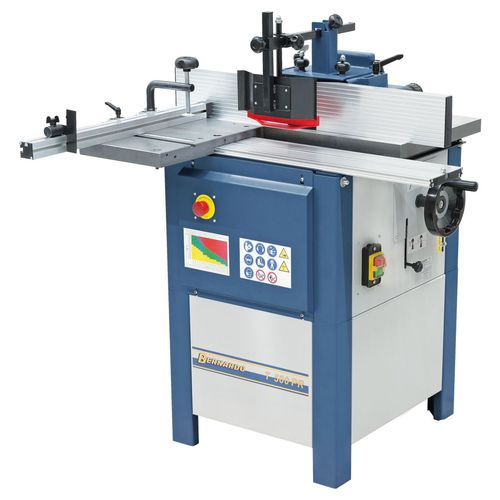

Wood spindle molder T 500 PR

wood spindle molder
wood spindle molder
wood spindle molder
wood spindle molder
wood spindle molder
wood spindle molder
wood spindle molder
Add to favorites
Compare this product


Characteristics

Applications
for wood
Revolutions per minute

1,400 rpm, 3,790 rpm, 5,670 rpm, 8,650 rpm
(8,796 rad.min-1, 23,813 rad.min-1, 35,626 rad.min-1, 54,350 rad.min-1)

Description

The ideal table spindle moulder for craftsmen looking for a combination of high performance and precision at minimum space requirements. Comes complete with roller table to raise user comfort significantly. Properties • Solid moulding fence features finely adjustable aluminium stop bars • Roller table, as standard, for maximum operating comfort • Torsion-free, grey cast-iron machine table for maximum accuracy • Oversize moulding fence with dust extraction outlet 100 mm • V-belt allows for fast and convenient speed change • Ergonomically arranged switches and control elements guarantee high work comfort • Generous, grey cast-iron construction of moulder unit Table size 600 x 400 mm Table size roller table 400 x 250 mm Working height 820 mm Spindle diameter 30 mm Height adjustment of spindl 110 mm Working length of spindle 105 mm Max. tool diameter 160 mm Max. tool diameter concealed 160 mm Motor power output S1 100% 1, 5 kW (2,0 HP) Motor power input S6 40% 2,1 KW (2,8 HP) Voltage 230 V Machine dimension (W x D x H) 1040 x 1070 x 1130 mm Weight approx. 99 kg

Catalogs

No catalogs are available for this product.

See all of Bernardo‘s catalogs
