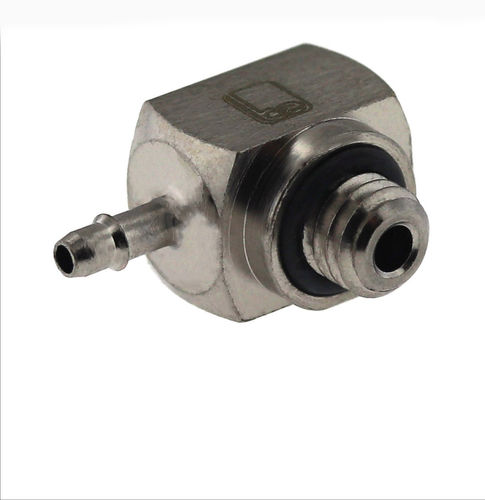

Hydraulic fitting S5MLS-..-.
pneumaticthreadedbarbed

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic, pneumatic
Attachment
threaded, barbed
Configuration
elbow
Material
brass, stainless steel
Gender
male
Other characteristics
O-ring face seal, corrosion-resistant, external thread, 360° adjustable
Diameter

Min.: 1.6 mm
(0.063 in)

Max.: 4.5 mm
(0.177 in)

Operating pressure

Min.: 0 psi

Max.: 100 psi

Description

Low profile, adjustable position elbow fitting, with M5x0.8 external thread and built-in barb. Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing. Features Beswick's trademark O-ring seal design provides a leak-tight joint. Beswick’s proprietary single edged "line contact" barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
