water pressure regulator / for fuel / for chemical products / for gas
PRDHF-.N Beswick Engineering Co, Inc.

{{requestButtons}}

Characteristics

  • Product:

    for water, for fuel, for chemical products, for gas, for air

  • Number of stages:

    single-stage

  • Technology:

    membrane

  • Material:

    stainless steel

  • Applications:

    precision, for medical applications, for analytical instruments, for hygienic applications, for chromatography, for laser, for water systems, pneumatic

  • Other characteristics:

    compact, miniature, high-precision, high-flow, high-performance, chemical-resistant, zero-bleed, corrosion-resistant

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 34.7 bar (503.28 psi)

  • Orifice diameter:

    1.4 mm

Description

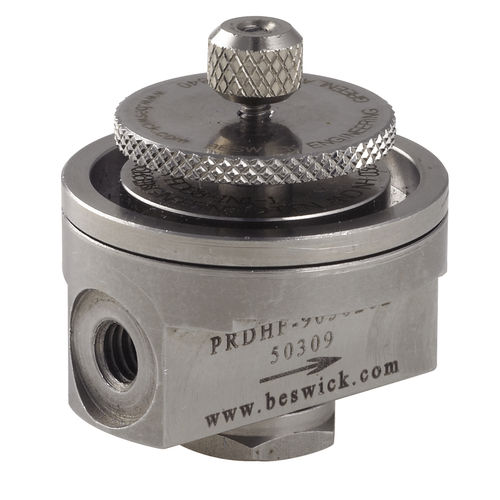

The Beswick Engineering PRDHF series Singe Stage Diaphragm non-relieving Regulator offers pressures up to maximum of 500 psig, and delivers higher flows than the PRD and PRDB series. It features a maximum outlet pressure of 30 psig. Due to a high valve/sensing area ratio, it can be used for low pressure regulation down to ½ psi. It weighs 35 grams, and is made out of brass and stainless steel (303 & 316 variants), as well as aluminum (18 g). It also features 10 to 32 internal threaded inlet and outlet ports.
