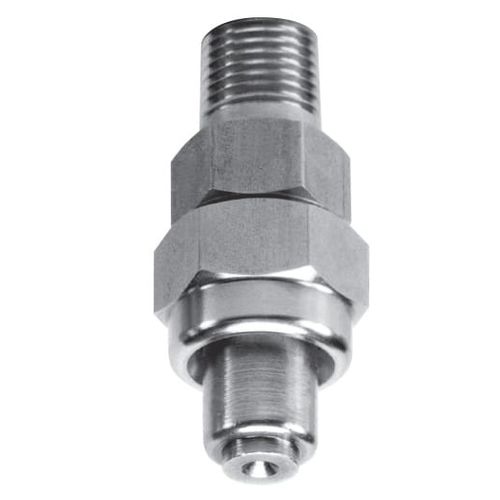

Spray nozzle CW series
for liquidsfull-conestainless steel

spray nozzle
spray nozzle
spray nozzle
spray nozzle
Add to favorites
Compare this product

Go to the BETE website for more information

Characteristics

Function
spray
Fluid
for liquids
Stream
full-cone
Material
stainless steel, brass
Applications
for the food industry, industrial, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
Spray angle
90°, 120°, 80°, 110°, 100°
Other characteristics
NPT, male, female, BSP, axial, low flow rate
Flow

Min.: 0.09 us gal/min
(0.34 l/min)

Max.: 2.14 us gal/min
(8.1 l/min)

Pressure

Min.: 10 psi

Max.: 400 psi

Description

Low Flow Full Cone and Hollow Cone Nozzles for Quick Change DESIGN FEATURES Standard three-piece construction Optional 50- or 100-mesh strainer (please refer to the Accessories PDF for more information) Interchangeable spray tips HOW SPRAY PATTERN IS ACHIEVED A hollow cone nozzle sprays fluids in a ring-like pattern around a given radius and the spray exits on the same axis it enters in the axial design For a full cone nozzle, atomization is achieved by the water being spun inside the nozzle and exiting an orifice An insert is used to create the spray pattern Produces medium to coarse droplet size More uniform pattern than spiral nozzles
