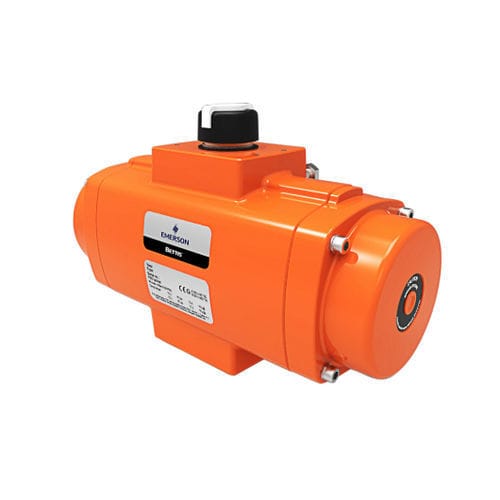

rotary actuator / pneumatic / rack-and-pinion / double-acting
D series BETTIS

{{requestButtons}}

Characteristics

  • Movement:

    rotary

  • Type:

    pneumatic

  • Technology:

    rack-and-pinion, double-acting

  • Torque:

    Min.: 0 Nm (0 ft.lb)

    Max.: 2,528 Nm (1,864.56 ft.lb)

Description


Bettis D-Series Pneumatic Rack and Pinion Valve Actuator

New Rack & Pinion E Series (RPE) – is now available here. RPE is a newly-enhanced product and replaces D Series actuators with new features; expanded size range; and available in Metric and Imperial.

Operating temperatures of -20°C to +80°C (-4°F to +175°F). Optional temperature trims extend the range from -40°C to + 120°C (-40°F to +250°F). Higher temperature options may be offered by consulting the factory.

Operating pressures ranging from 3 to 8 bar (40 to 120 psig).
