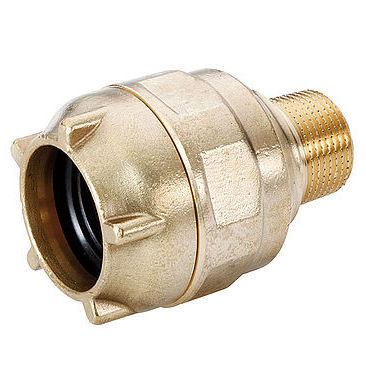

Hydraulic fitting 1101
push-inbrass

hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
push-in
Material
brass
Diameter

Min.: 25 mm
(0.984 in)

Max.: 63 mm
(2.48 in)

Description

Plug-in connector for drinking water, water and gas. The material-friendly connecting technique enables that the pipe is only stressed as the relations of pression and torsion demand. Premature wear due to overstressing of material and subsequent troublescan be excluded. The metal clamping claw enables a torsion-free assembly by its positioning. The connector can easiliy be dismounted – all components can be reused without problems. For the application in the field of gas the connector has an additional insert pipe to stabilise the pipe. For the application in the field of drinking water the connector has the proven EPDM profile gasket which reliably seals minor damages on the surface. The plug-in connectors for the application in the fields of water and gas additionally have a special o-ring. The sealing and clamping functions are separated and independent which makes the connector extraordinarily safe.
