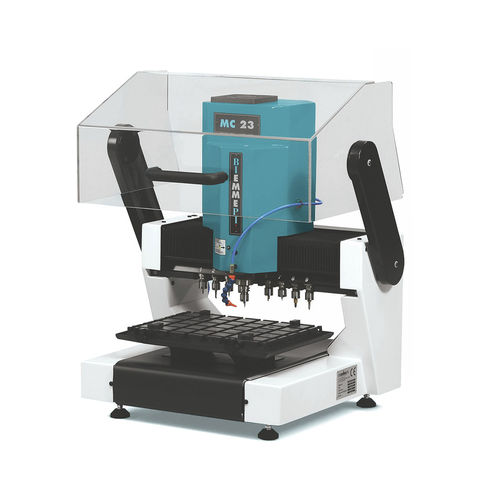

3-axis CNC machining center / vertical / for wood / for plastics
MC 23, 23 R BIEMMEPI SISTEMI

{{requestButtons}}

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    vertical

  • Machined material:

    for wood, for plastics

  • Other characteristics:

    milling, compact, drilling

  • X travel:

    300 mm

  • Y travel:

    240 mm

  • Z travel:

    75 mm

  • Rotational speed:

    Max.: 36,000 rpm (226,195 rad.min-1)

    Min.: 600 rpm (3,770 rad.min-1)

  • Power:

    600 W (0.82 hp)

Description

The MC minicentres series includes seven models with different working area from 240x300 mm to 1240x620 mm. MC models are engraving and milling instruments with state-of-the-art performance, efficiency and reliability. The automatic tool change is practical, easy and reliable; the advanced numerical control is derived from the top milling machines series.
Increase minicentre versatility outfitting them with the large series of available fittings according to the customer necessity.
Is possible to combine roughing ,finishing ,milling ,engraving , drilling and tapping operations using several tools available in the crib to increase the productivity.
With BMPCAD, the CAD-CAM software developed by Biemmepi, the tools management become easy and executable at side machine
