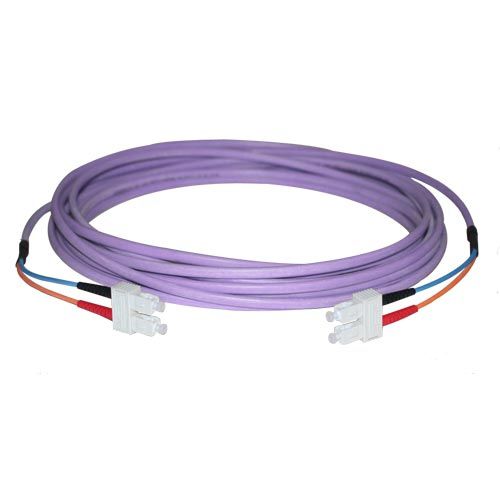

Optical data cable EFE354-015M-AQ-R

fiber optic duplexEthernetrobust

The ruggedised patch cable designed for Gigabit Ethernet applications up to 10 Gbps! Flexible and compact. Crush and kink resistant. Twice as strong as standard duplex patch cables. Less prone to damage during and after installation. Our ruggedised fibre patch cables provide a more robust alternative to standard duplex patch cables. Ideal for use in office LAN connections and internal point-to-point links where frequent handling is likely or for use in areas more prone to exposure to potentially harmful elements such as in industrial applications. The cable consists of two simplex units surrounded by an aramid yarn strength member and surrounded with an LSZH jacket, held together with an overall LSZH jacket. The cable provides great protection against kinking and crushing, two common problems when installing fibre. In spite of the extra strength and durability, the cable is still flexible and compact. Outer Diameter — 3.8 x 6.6 mm Min. Bend Radius (installation) — 20 Times Diameter Min. Bend Radius (installed) — 10 times Diameter Fire performance — LSZH Operating Temperature — -20 — +60°C Storage Temperature — -20 — +70°C Max Crush Resistance — 200N/100mm
