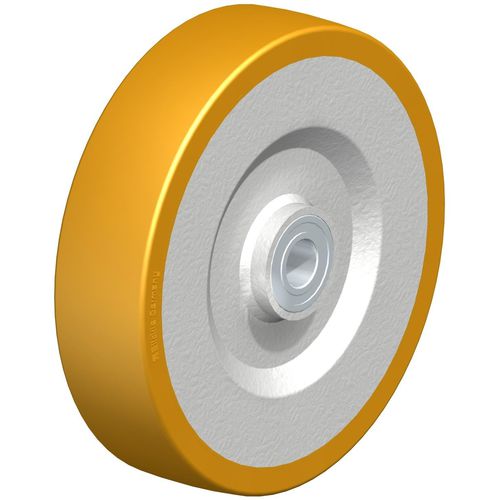

Wheel with solid tire SETH seriespolyurethanefor heavy loadsnon-marking
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- polyurethane
- Applications
- for heavy loads
- Other characteristics
- non-marking, low-noise, elastic, shock absorbing
- Load capacity
Max.: 1,350 kg
(2,976 lb)Min.: 500 kg
(1,102 lb)- Diameter
Max.: 250 mm
(9.84 in)Min.: 125 mm
(4.92 in)- Tread width
Max.: 60 mm
(2.36 in)Min.: 50 mm
(1.97 in)
Description
The wheel centre of the SETH series is made of triple-welded pressed steel with a tubular steel hub, onto which the high-quality polyurethane-elastomer Blickle Extrathane® tread is cast. This provides a high resistance to cut and tear propagation, low rolling resistance and a high load capacity.
The SETH series can also be used for high speed applications up to 10 km/h with a reduced load capacity. The ultra-robust wheel centre makes the wheels particularly resistant to dirt and shocks.
Catalogs
Wheels and Castors
637 Pages
