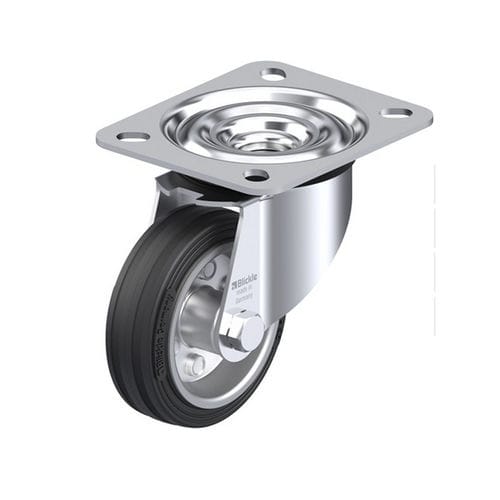

swivel caster / rod / steel / pressed steel
LE-VE, B-VE series Blickle Räder+Rollen GmbH u. Co. KG

{{requestButtons}}

Characteristics

  • Type:

    swivel

  • Mount:

    rod

  • Other characteristics:

    steel, pressed steel, rubber, ball bearing

  • Tread width:

    Max.: 50 mm

    Min.: 25 mm

  • Wheel diameter:

    Max.: 200 mm

    Min.: 80 mm

  • Load capacity:

    Max.: 205 kg (452 lb)

    Min.: 50 kg (110 lb)

Description

Brackets: LE/B series - Made of pressed steel, swivel
bracket with double ball bearing in the swivel head, swivel
head seals. The special Blickle dynamic riveting process
of the swivel head results in minimal swivel head play and
smooth rolling characteristics with an increased service life
achieved by the work hardening of the ball race grooves.
Bolted wheel axle.
Zinc-plated, blue-passivated, Cr6-free.
Wheel and swivel head ‘stop-fix’ brake
Wheels: VE series - Tyres: Made of standard solid rubber,
80° shore A, black.
Rims: Made of pressed steel, zinc-plated, blue-passivated,
Cr6-free.
Bearing type: Roller bearing.
Detailed description: Page 132 and 43
