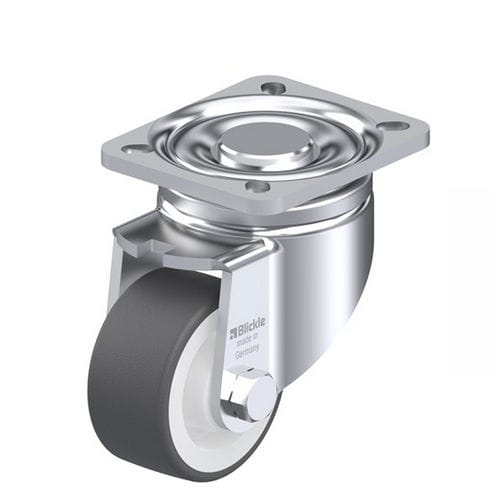

Swivel caster LH-POTH seriesbase platewith ball bearinglow-noise
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, low-noise, pressed steel, polyurethane, polyamide
- Load capacity
Max.: 900 kg
(1,984 lb)Min.: 500 kg
(1,102 lb)- Wheel diameter
Max.: 250 mm
(9.843 in)Min.: 150 mm
(5.906 in)- Tread width
Max.: 65 mm
(2.56 in)Min.: 45 mm
(1.77 in)
Description
The tread of the POTH series consists of the high-quality thermoplastic polyurethane (TPU) and has a hardness of 94 Shore A. This is cast onto an impact-resistant nylon wheel centre. The tread guarantees a high level of abrasion resistance and low swivel and rolling resistance. It is also non-marking and non-staining.
The POTH series can also be used for higher load capacities than the PATH series due to the heavy duty nylon wheel centre.
The POTHS series wheel series was designed specifically for the low-noise transport of heavy loads in sensitive hygienic areas.
