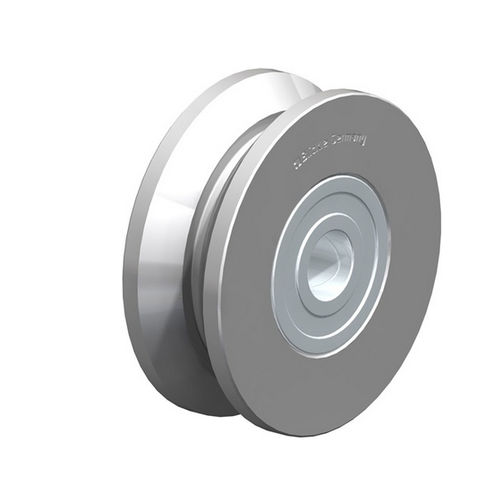

Monobloc wheel DSPK series
steelfor heavy loadsflanged

monobloc wheel
monobloc wheel
monobloc wheel
Add to favorites
Compare this product

Go to the Blickle Räder+Rollen GmbH u. Co. KG website for more information

Characteristics

Type
monobloc
Hub material
steel
Applications
for heavy loads
Other characteristics
flanged
Load capacity

Max.: 1,000 kg
(2,205 lb)

Min.: 120 kg
(265 lb)

Diameter

Max.: 200 mm
(7.87 in)

Min.: 50 mm
(1.97 in)

Tread width

Max.: 33 mm
(1.3 in)

Min.: 18 mm
(0.71 in)

Description

The wheels in the SPKVS and DSPK series are made from high-quality machined rugged grey cast iron. Due to their hardness of 190 - 230 HB, the wheels provide excellent rolling resistance. The wheels are also wear-resistant. The wheels in the SPKVS series have a rail profile which meets the requirements of crane rail standard DIN 536. The DSPK series has a V-shaped tread. The flanged wheels are frequently used as guide wheels or pulleys. However, they are also used for machine and systems engineering applications.
