E-FORM
Accuracy and productivity in tube shaping
All-electric tube end forming with a CNC rolling device, up to 10 tons of force
Repeatability and precision thanks to CNC rolling

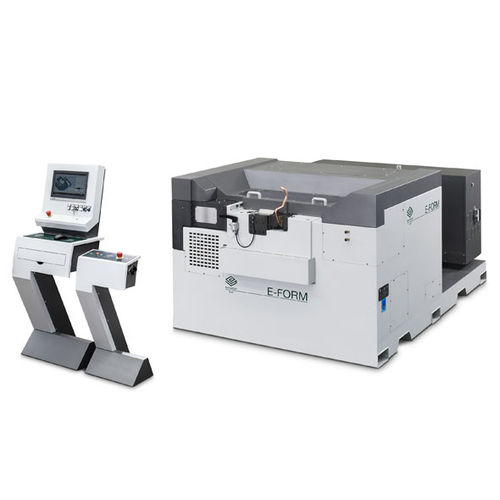

The E-FORM end forming machine has a new, fully-electric, rolling device for copper, aluminium, stainless steel or iron tubes up to 30mm diameter. The axis management feature in the VGP2D software makes the end forming machine easy to program to create parts with maximum precision and repeatability.
End forming and CNC rolling.
A completely different tolerance.
The punches of tube forming machine E-FORM reach up to 10 tons of force in order to better mold tubes of various materials, from copper to aluminium, to iron and stainless steel, with the utmost precision.
Up to 9 processing stations
Shaping, rolling, butting, cutting and more. For each job, your E-FORM has the right configuration.
Configure the tube end forming stations to meet your production demands with fixed passages, rotating tools, and the CNC-controlled rolling device.
By combining the various technologies, it is possible to obtain deformed terminals with repeatability characteristics, finishings and tolerances similar to those obtained by removal methods.
Multiple E-FORM in one. Yours
Choose the configuration that is better adapted to the process you wish to complete.
Focus on feasibility
Make much more complex shapes by also working along the length of the tube.
