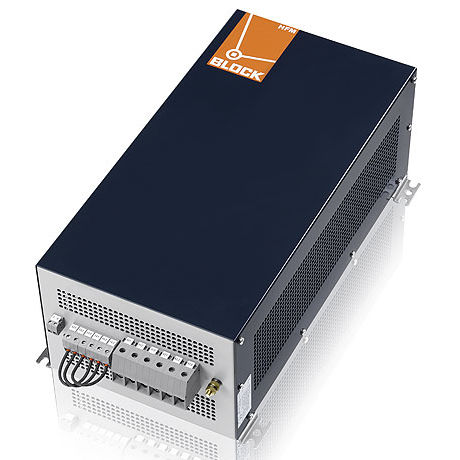

Three-phase harmonic filter reactor HFM‑FB series

General Data Rated voltage 3 x 400 ‑ 3 x 480 Vac Rated current 3 x 10.00 ‑ 3 x 433.00 A 7 % typ. at nominal load Load rated capacity 5 ‑ 250 kW Insulation class F Ambient temperature ‑10 °C to +40 °C Degree of protection IP 00 SCCR 100 kA (without preliminary fuse) Advantages Sinusoidal current consumption from the main in devices with uncontrolled B6U diode rectifiers or controlled B6C thyristor bridges Compliance with EN 61000‑3‑2, EN 61000‑3‑12 Support in the compliance with IEEE 519, D‑A‑CH‑CZ Cos(phi)>0.95 at rated current Hardly any intermediate circuit voltage dip by comparison with a 4 % uK line reactor Use of the HFM as a central sum filter for multiple converters possible
