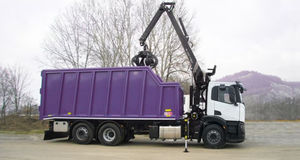

truck-mounted crane / folding / hydraulic / lifting

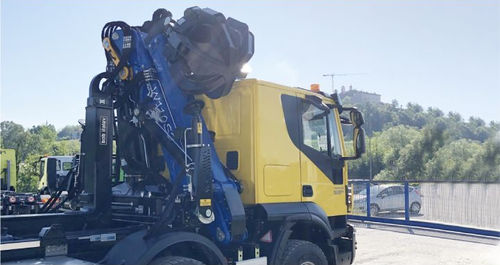

W 110 S2 BOB SISTEMI IDRAULICI SPA

{{requestButtons}}

Characteristics

  • Configuration:

    truck-mounted

  • Structure:

    folding

  • Other characteristics:

    hydraulic, lifting

  • Lift capacity:

    Max.: 1,950 kg (4,299 lb)

    Min.: 1 kg (2 lb)

  • Working height:

    Max.: 10 m (32'09")

    Min.: 0 m (0'00")

Description

Class of calculation H1B4
• Lifting moment = kNm 110
• Hydraulic outreach = 7,86 m
• First arm with hydraulic extension
• Jib with one hydraulic extension with
integrated fluid transmission system inside jib
• Compensated proportional flow control
• Top seat control with two additional functions
at the jib extension
• Stabilizers ground bilateral controls with
hydraulic extension and descent
• Crane rotation 425° with double rack
• Construction to Machinery Directives
2006/42/CE+UNI EN 12.999
• Basic crane weight*: 2.580 kg
* The weight is indicative and referred to the
basic crane without options or, accessories,
protection carters and ancillary equipments
(grab, clamp, glass handling device)
