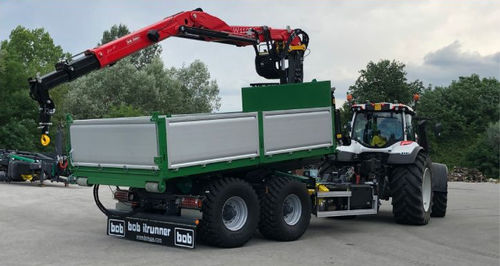

Truck-mounted crane W 110 S3
foldingliftinghydraulic

truck-mounted crane
truck-mounted crane
truck-mounted crane
Add to favorites
Compare this product


Characteristics

Configuration
truck-mounted
Structure
folding
Applications
lifting
Other characteristics
hydraulic
Lift capacity

Min.: 1 kg
(2.2 lb)

Max.: 1,850 kg
(4,078.6 lb)

Working height

Min.: 0 m
(0'00" )

Max.: 12 m
(39'04" )

Description

• FOLDABLE • Class HIB4 • Lifting torque = 110 kNm • Hydraulic outreach = 9,30 m • First boom extendable • Second boom with two hydraulic extensions with integrated service pipes • Proportional valve control from the seat with two additional elements at the end of the boom • Stabilizers with hydraulic extension and descent • Stabilizers with bilateral ground control • 4250 rotation with double rack and limit switch brake • Construction in accordance with Machinery Directive 2006/42/CE and standard AN 12999 Base crane weight*: 2.670 kg
