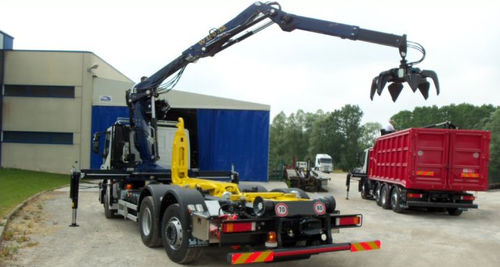

truck-mounted crane / folding / hydraulic / lifting
W 150 S2 BOB SISTEMI IDRAULICI SPA

{{requestButtons}}

Characteristics

  • Configuration:

    truck-mounted

  • Structure:

    folding

  • Other characteristics:

    hydraulic, lifting

  • Lift capacity:

    Min.: 1 kg (2 lb)

    Max.: 2,500 kg (5,512 lb)

  • Working height:

    Min.: 0 m (0'00")

    Max.: 11 m (36'01")

Description

FOLDABLE
• Class of calculation H1B4
• Lifting moment = kNm 150
• Hydraulic outreach = 7,75 m
• First arm with hydraulic extension
• Jib with one hydraulic extension with
integrated service hoses inside jib
• Compensated proportional flow control
• Top seat control with two additional
functions at the jib extension
• Stabilizers ground bilateral controls with
extension and 180° hydraulic rotation
• Rotation 425° with double rack
• Construction to Machinery Directives
2006/42/CE+UNI EN 12.999
• Basic crane weight*: 3.130 kg
* The weight is indicative and referred to
the basic crane without options or,
accessories, protection carters and
ancillary equipments (grab, clamp, glass
handling device)
