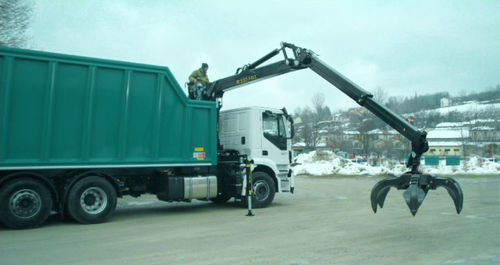

truck-mounted crane / telescopic / articulated / hydraulic
R 110 MS1 BOB SISTEMI IDRAULICI SPA

{{requestButtons}}

Characteristics

  • Configuration:

    truck-mounted

  • Structure:

    telescopic, articulated

  • Other characteristics:

    hydraulic, lifting

  • Lift capacity:

    Min.: 1 kg (2 lb)

    Max.: 1,700 kg (3,748 lb)

  • Working height:

    Min.: 0 m (0'00")

    Max.: 10 m (32'09")

Description

•Class of colculotion H1B4
Lifting moment = kNm 110
•Hydroulic outreoch = 7.60 m
•First arm rigid type
•Jib with one hydraulic extension with
integroted fluid transmission system inside jib
•Compensated proportional flow control
•Top seat control with two additional functions
at the jib extension
Stabilizers ground bilatéral Controls with
hydraulic extension and descent
Crâne rotation 425° with double rack
Construction to Machinery Directives
2006/42/CE+UNI EN 12.999
•Basic crâne weight*: 2.190 kg
* The weight is indicative and referred to the
bas/c crâne wïfhouf options or. accessories,
protection carters and anciitary equipments
(grab, ctomp, giass handling device
