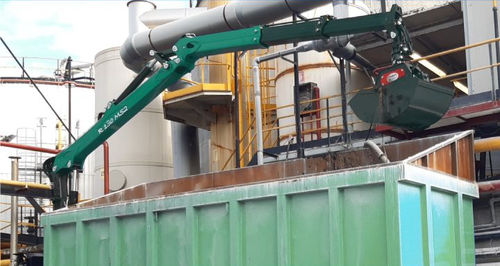

Truck-mounted crane R 130 MS2
articulatedliftinghydraulic

truck-mounted crane
truck-mounted crane
Add to favorites
Compare this product


Characteristics

Configuration
truck-mounted
Structure
articulated
Applications
lifting
Other characteristics
hydraulic
Lift capacity

Min.: 1 kg
(2.2 lb)

Max.: 1,900 kg
(4,188.8 lb)

Working height

Min.: 0 m
(0'00" )

Max.: 11 m
(36'01" )

Description

• NOT FOLDABLE • Class HIB4 • Lifting torque = 130 kNm • Hydraulic outreach = 9,55 m • First boom fixed • Second boom with hydraulic extension with integrated service pipes • Proportional valve control from the seat with two additional elements at the end of the boom • Stabilizers with hydraulic extension and descent and 1800 hydraulic rotation • Stabilizers with bilateral ground control • 4250 rotation with double rack • Construction in accordance with Machinery Directive 2006/42/CE • Base crane weight': 2330 kg
