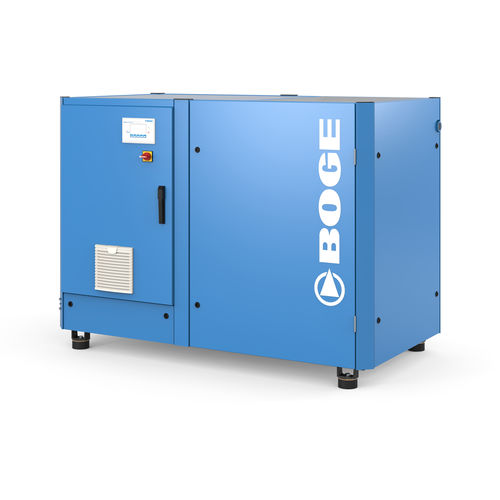

Screw compressor SLF series
airelectrically-poweredstationary

screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
high-efficiency, direct-drive, with frequency control
Pressure

Min.: 0 bar
(0 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 2.1 m³/min
(74.16 ft³/min)

Max.: 9.8 m³/min
(346.08 ft³/min)

Power

37 kW, 45 kW, 55 kW
(50.31 hp, 61.18 hp, 74.78 hp)

Length

2,045 mm
(81 in)

Width

1,455 mm
(57 in)

Height

1,065 mm
(42 in)

Weight

1,250 kg, 1,380 kg, 1,498 kg
(2,755.8 lb, 3,042.4 lb, 3,302.5 lb)

Description

The SLF machines work best in specific areas. Used in conjunction with direct drive and frequency control, they form a very flexible system. The delivery quantity is determined by the pressure value – so the machine delivers only as much compressed air as is actually needed. Product Screw compressor with frequency control, direct coupled, oil lubricated Advantages heat recovery can be integrated focus control 2.0 frequency controlled cooling fan
