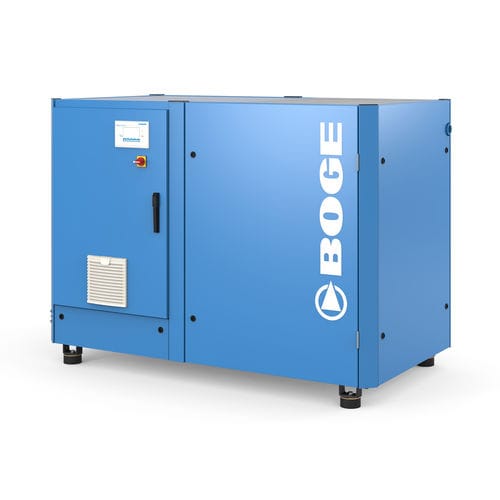

Screw compressor SF
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
high-efficiency, with frequency control
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 12.29 m³/min
(434.02 ft³/min)

Min.: 2.09 m³/min
(73.81 ft³/min)

Power

75 kW
(101.97 hp)

Length

2,045 mm
(81 in)

Width

1,455 mm
(57 in)

Height

1,065 mm
(42 in)

Weight

1,388 kg
(3,060 lb)

Description

Good, better, best: the next generation of the BOGE SF Series is characterised by even greater efficiency, smoothness and improved sound pressure level. Thanks to the frequency control, the generation of compressed air is ideally adapted to the actual demand. Product Screw compressor with frequency control, oil lubricated Advantages heat recovery can be integrated focus control 2.0 frequency controlled cooling fan
